Large-Array Microlenses

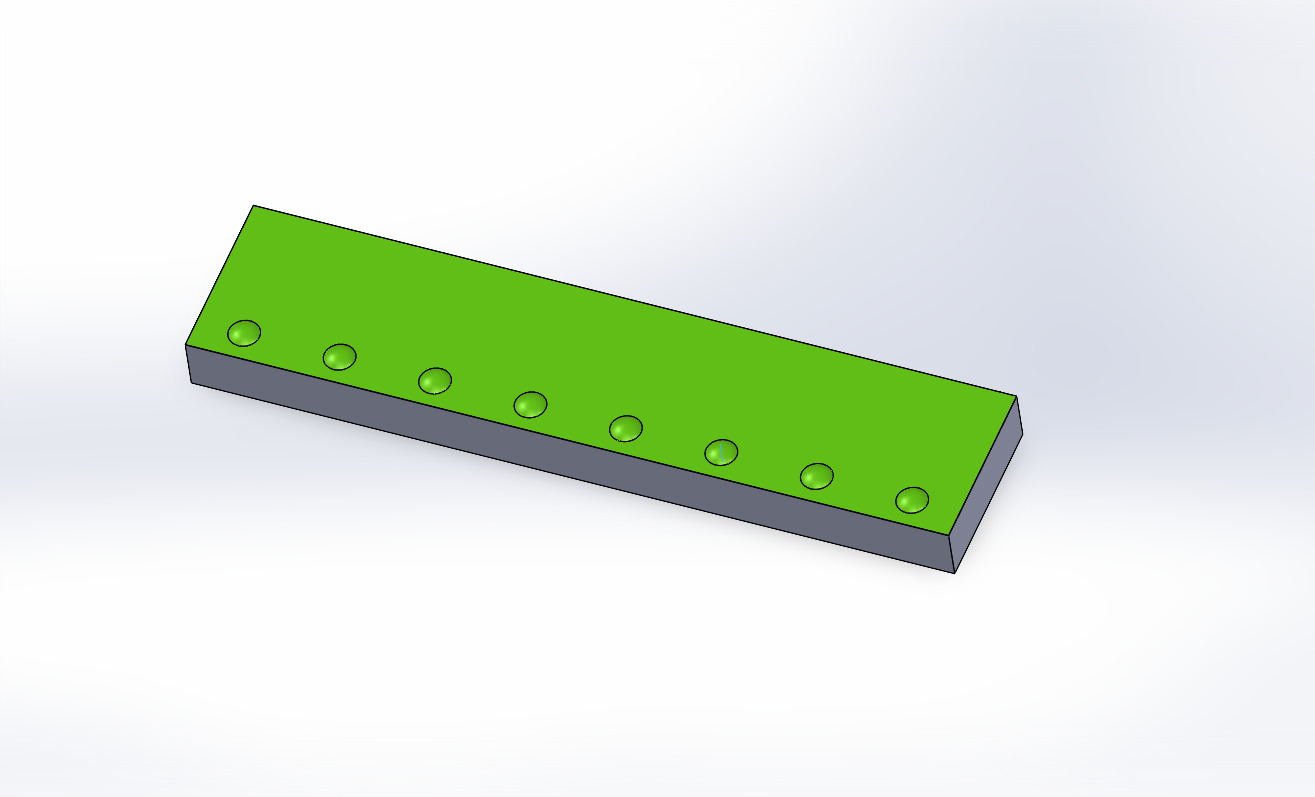

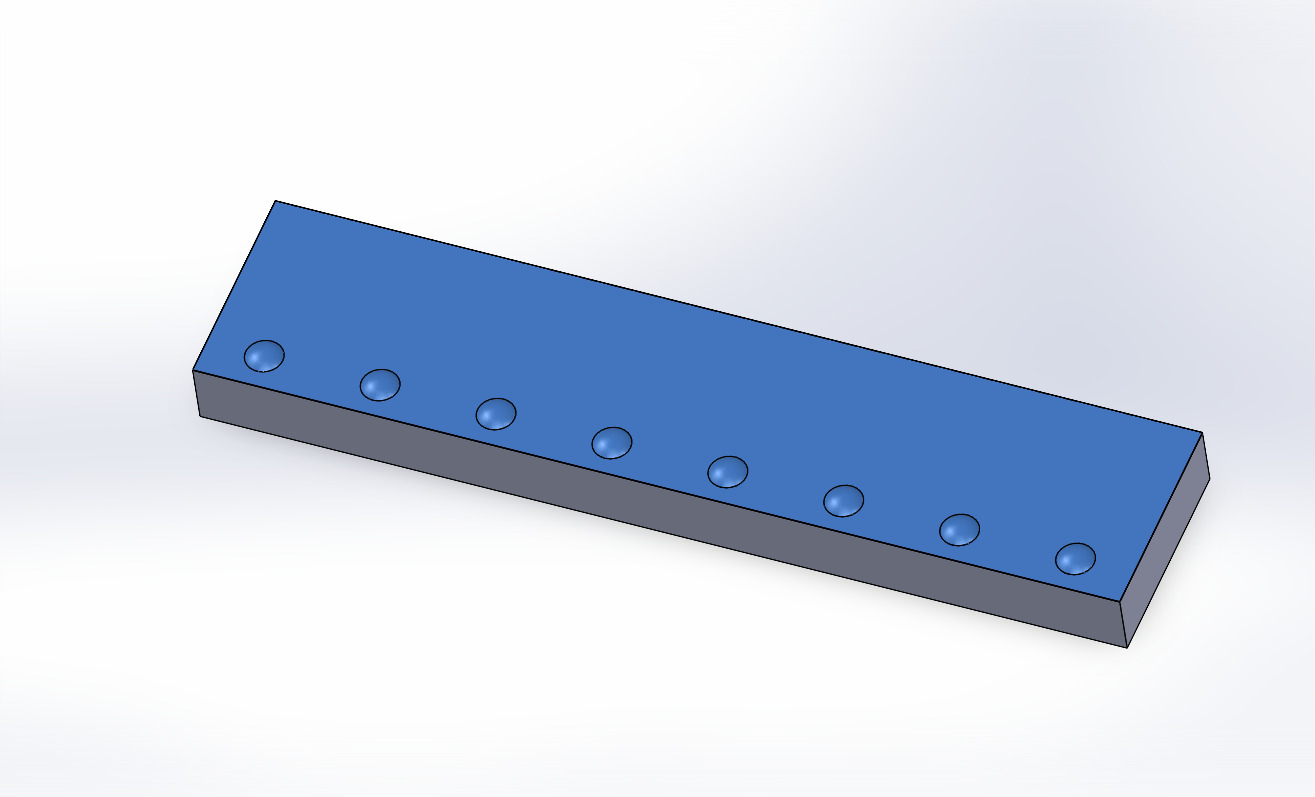

Large-Array Micro-lens Arrays
Materials:Silicon, fused silica (quartz), and specialty glass; material thickness: 0.2 mm – 1 mm.
Product Specifications & Process Capabilities:
1、Performance indicators refer to single lenses.
2、ROC Tolerance:
Array-to-Array: ±3%
Within-Array: ±1%
Test Methods: White-light interferometer (100% inspection) and step profilometer.
Applications: FAU for CPO/NPO, WSS, and OCS.
